Analyzing the Greatest Strikers in Football II: Visualizing Data

R
data analysis
sports
Author

David Schoch

Published

October 7, 2018

This post was semi automatically converted from blogdown to Quarto and may contain errors. The original can be found in the archive.

This is the second part of Analyzing the Greatest Strikers in Football. In the first part, we created the function get_goals() which allows us to conveniently scrape detailed information of players career goals from transfermarkt.co.uk. In this part, we are going to explore the data.

library(tidyverse) # for data wrangling
library(lubridate) # for date formats
library(ggimage)   # adding images to ggplot
library(patchwork) # attaching ggplot objects
library(viridis)   # viridis color schemes

We start by getting the data of Zlatan with the get_goals() function.

zlatan_tbl <- get_goals(player = "zlatan-ibrahimovic", id = "3455")

glimpse(zlatan_tbl)
## List of 4
##  $ data    :'data.frame':    423 obs. of  13 variables:
##   ..$ competition: chr [1:423] "Eredivisie" "Eredivisie" "UEFA Cup" "UEFA Cup" ...
##   ..$ day        : chr [1:423] "3" "4" "First Round" "First Round" ...
##   ..$ date       : Date[1:423], format: "2001-08-26" ...
##   ..$ venue      : chr [1:423] "A" "A" "H" "A" ...
##   ..$ against    : chr [1:423] "Feyenoord  " "FC Twente  " "Apol. Limassol" "Apol. Limassol" ...
##   ..$ minute     : num [1:423] 64 19 4 64 68 79 68 78 95 47 ...
##   ..$ standing   : chr [1:423] "0:1" "0:1" "1:0" "0:2" ...
##   ..$ type       : chr [1:423] "Tap-in" "" "" "Header" ...
##   ..$ provider   : chr [1:423] "Hatem Trabelsi" "" "Nikolaos Machlas" "Wamberto" ...
##   ..$ club       : Factor w/ 8 levels "Ajax Amsterdam",..: 1 1 1 1 1 1 1 1 1 1 ...
##   ..$ club_crest : chr [1:423] "https://tmssl.akamaized.net//images/wappen/head/610.png" "https://tmssl.akamaized.net//images/wappen/head/610.png" "https://tmssl.akamaized.net//images/wappen/head/610.png" "https://tmssl.akamaized.net//images/wappen/head/610.png" ...
##   ..$ age        : num [1:423] 19.9 19.9 20 20 20.2 ...
##   ..$ goals      : int [1:423] 1 2 3 4 5 6 7 8 9 10 ...
##  $ name    : chr "Zlatan Ibrahimovic"
##  $ birthday: Date[1:1], format: "1981-10-03"
##  $ portrait: chr "https://tmssl.akamaized.net//images/portrait/header/3455-1521831775.jpg?lm=1521831871"

For comparisons, we also grab the data for Messi and CR7.

messi_tbl <- get_goals("lionel-messi","28003")
cr7_tbl <- get_goals("cristiano-ronaldo","8198")

Greating a ggplot theme

This is a totally optional step, but I like to use a customized ggplot theme to make the plots more unique.

theme_goals <- function(base_family="Roboto Condensed",
                        ticks=TRUE,axis=TRUE,grid=""){
  ret <- theme_bw()+
    theme(panel.background = element_rect(fill="#666666",colour = "#666666"),
        plot.background = element_rect(fill="#666666",colour = "#666666"),
        panel.grid.minor = element_blank(),
        panel.border = element_rect(fill=NA,colour="#666666"),
        legend.background = element_rect(fill="#666666",colour = "#666666"),
        legend.box.background = element_rect(fill="#666666",colour = "#666666"),
        legend.key = element_rect(fill="#666666",colour = "#666666"),
        legend.text = element_text(family = base_family,colour="white",size=rel(1.1)),
        axis.text = element_text(colour="white",size=rel(0.9),family=base_family),
        axis.title = element_text(family = base_family,colour="white",size=rel(1.1)),
        legend.position = "bottom",
        plot.title = element_text(family = base_family,color="white",face = "bold",size=rel(1.5)),
        plot.subtitle = element_text(family = base_family,color="white"))
  if(ticks){
    ret <- ret + theme(axis.ticks = element_line(colour="white"))
  } else {
    ret <- ret + theme(axis.ticks = element_blank())
  }
  if(axis){
    ret <- ret + theme(axis.line = element_line(colour="white"))
  } else {
    ret <- ret + theme(axis.line = element_blank())
  }
  if(grid==""){
    ret <- ret + theme(panel.grid = element_blank())
  } else if(grid=="y"){
    ret <- ret + theme(panel.grid.major.x = element_blank(),
                       panel.grid.major.y = element_line(colour="white",size=0.1))
  } else if(grid=="x"){
    ret <- ret + theme(panel.grid.major.y = element_blank(),
                       panel.grid.major.x = element_line(colour="white",size=0.1))
  }
  ret
}

Let’s move on to the more interesting part.

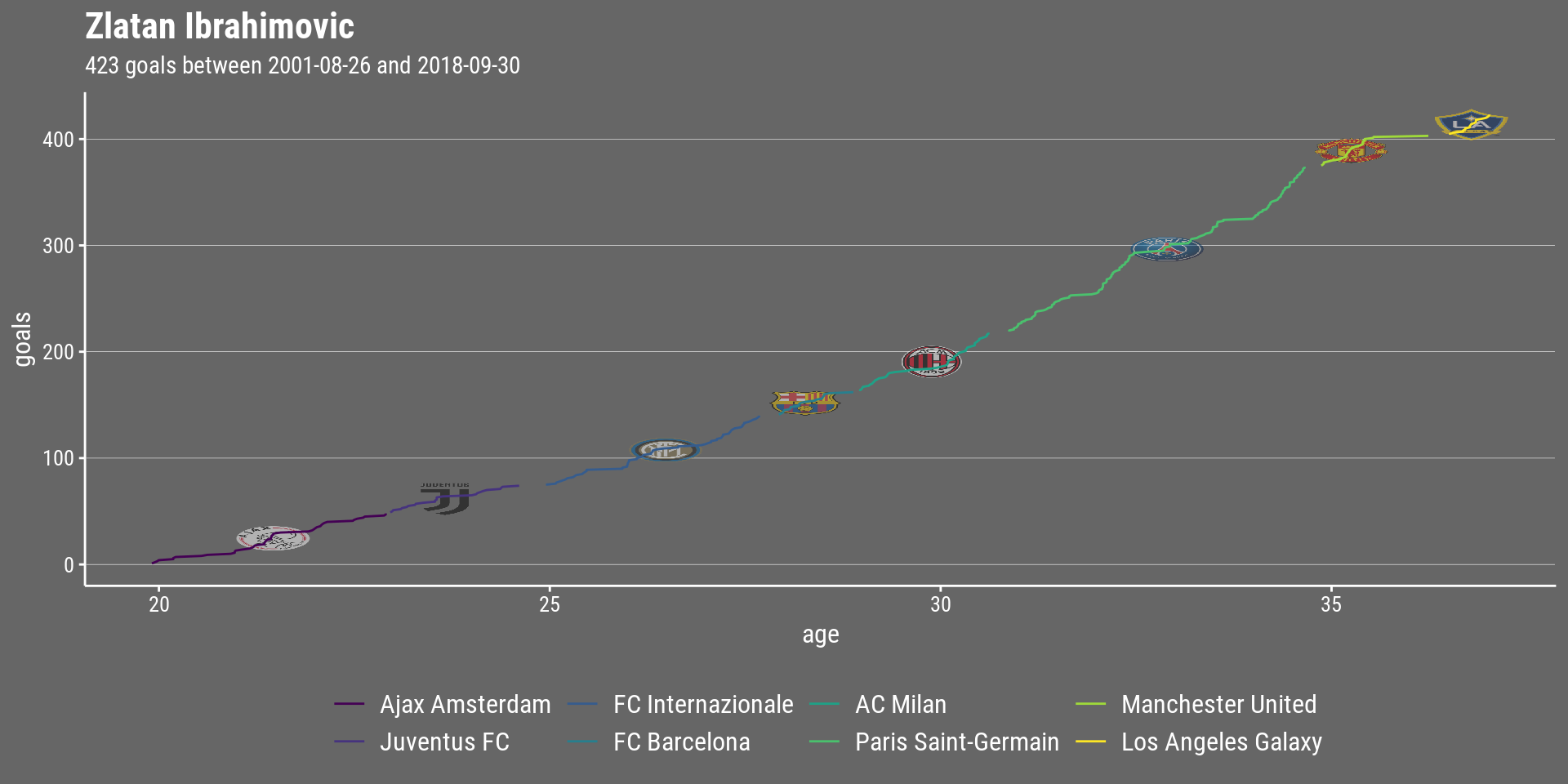

Goals over time and per club

# calculate position of crests
crest_pos <- zlatan_tbl$data %>%
  group_by(club) %>%
  summarise(x = mean(age),
            y = mean(goals),
            crest = club_crest[1])

ggplot(zlatan_tbl$data,aes(x=age,y=goals,col=club))+
  geom_image(data=crest_pos,aes(x=x,y=y,image=crest),size=0.05,alpha=0.5)+
  geom_line()+
  scale_color_viridis_d(option = "viridis", name = "")+
  theme_goals(grid = "y")+
  labs(title=zlatan_tbl$name,
       subtitle=paste(nrow(zlatan_tbl$data),"goals between",
                min(zlatan_tbl$data$date),"and",max(zlatan_tbl$data$date))) -> p_date

p_date

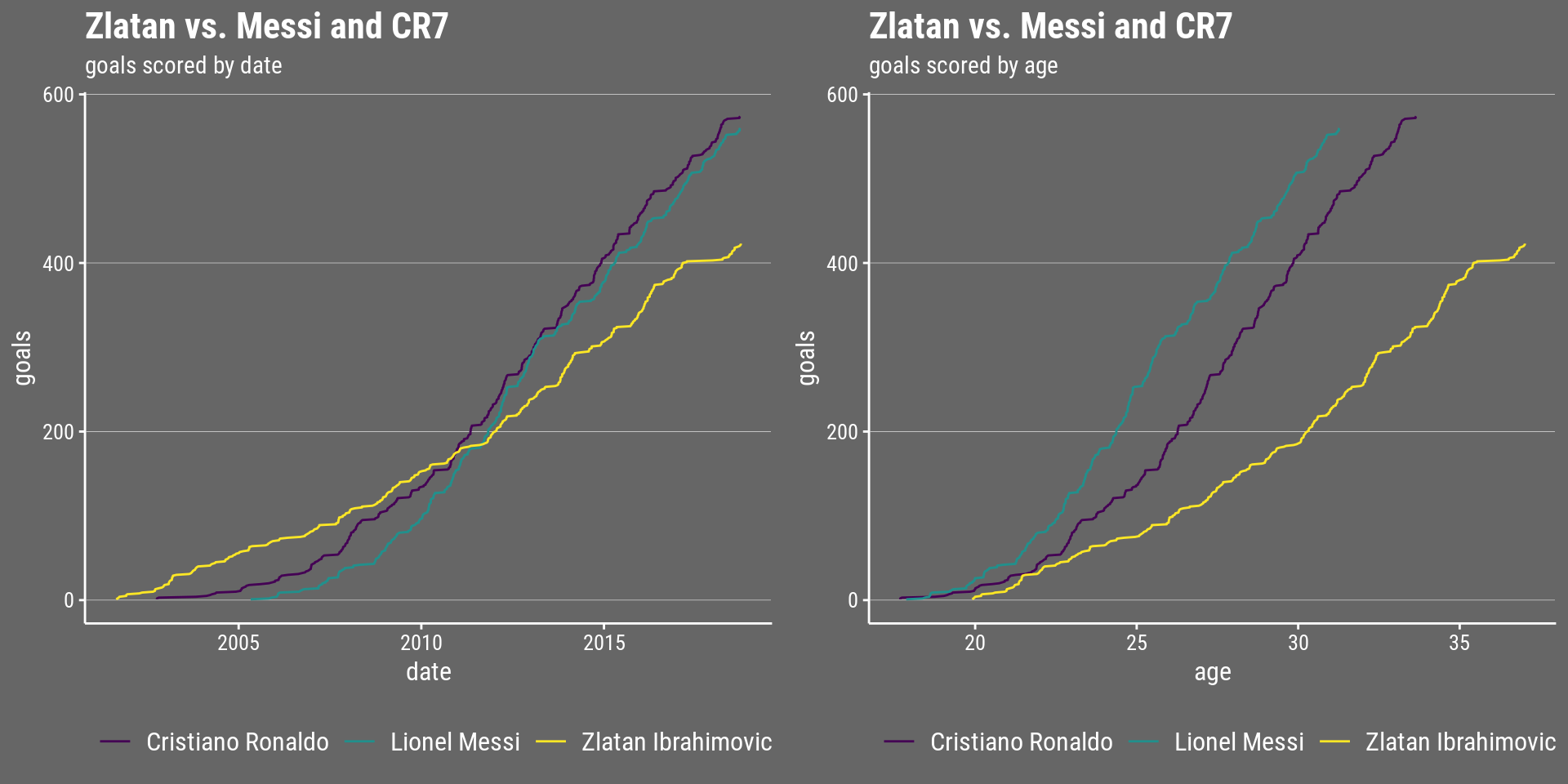

Zlatan truly is a prolific player, having scored more than 400 goals for 8 different clubs. But his achievements in terms of goals scored fade compared to Messi and CR7.

Goals per minute and standing

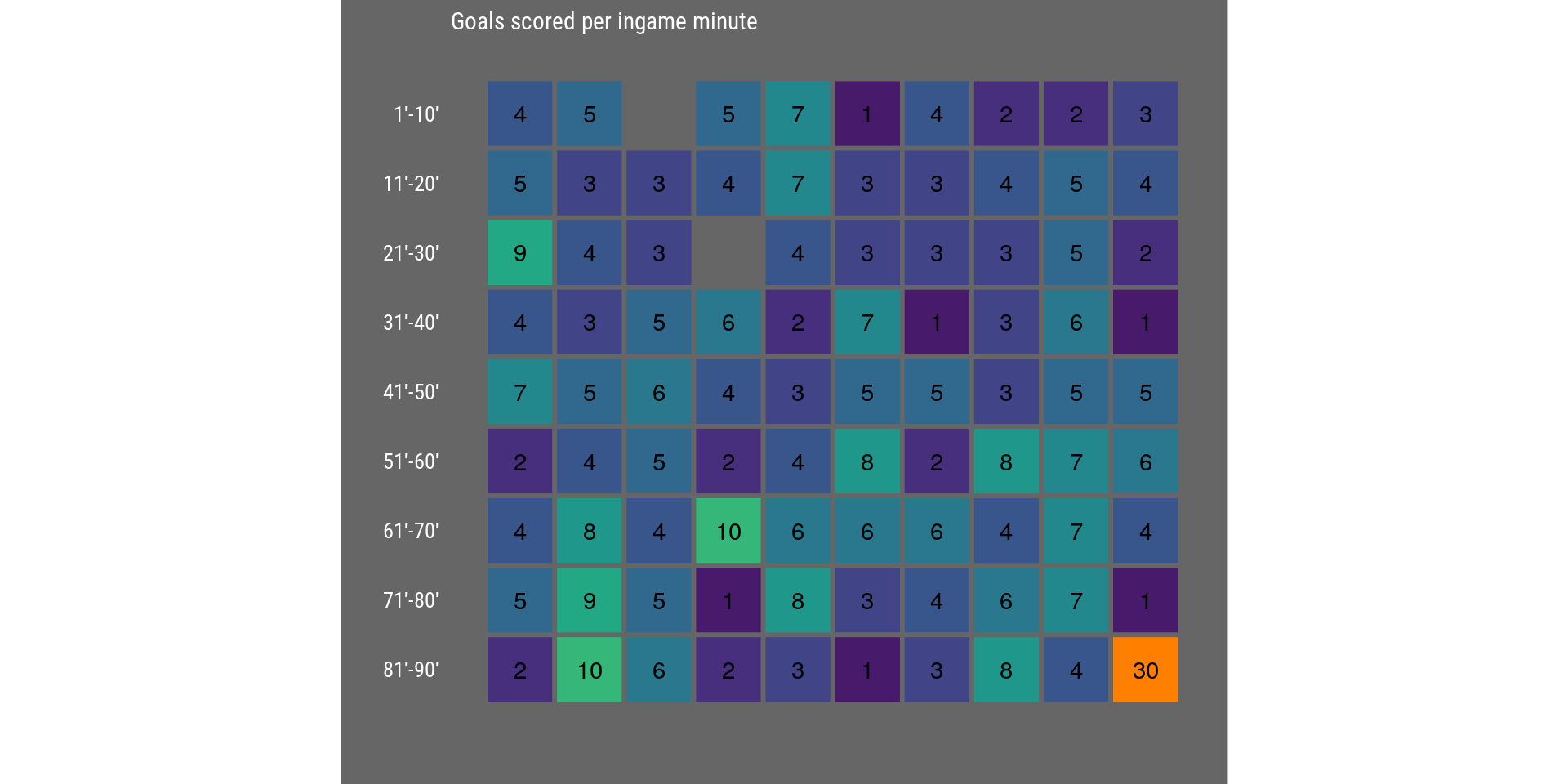

Below we look at the number of goals scored per ingame minute, excluding extra time.

zlatan_tbl$data$y <- floor(zlatan_tbl$data$minute/10)
zlatan_tbl$data$x <- zlatan_tbl$data$minute%%10
zlatan_tbl$data$y[zlatan_tbl$data$x==0] <- zlatan_tbl$data$y[zlatan_tbl$data$x==0]-1
zlatan_tbl$data$x[zlatan_tbl$data$x==0] <- 10
zlatan_tbl$data %>%
  dplyr::filter(minute<=90) %>%
  group_by(x,y,minute) %>%
  count() %>%
  ggplot(aes(x,y))+geom_tile(aes(fill=n),colour="#666666",size=1)+
  geom_text(aes(label=n))+
  scale_y_reverse(breaks=0:8,
                  labels=c("1'-10'","11'-20'","21'-30'","31'-40'","41'-50'","51'-60'",
                           "61'-70'","71'-80'","81'-90'"))+
  viridis::scale_fill_viridis(option = "D",name="",limits=c(0,15),na.value="#FF7F00")+
  theme_goals(ticks = F,axis = F,grid = "")+
  theme(axis.text.x = element_blank(),
        legend.position = "none")+
  coord_fixed()+
  labs(x="",y="",subtitle="Goals scored per ingame minute") -> p_min

p_min

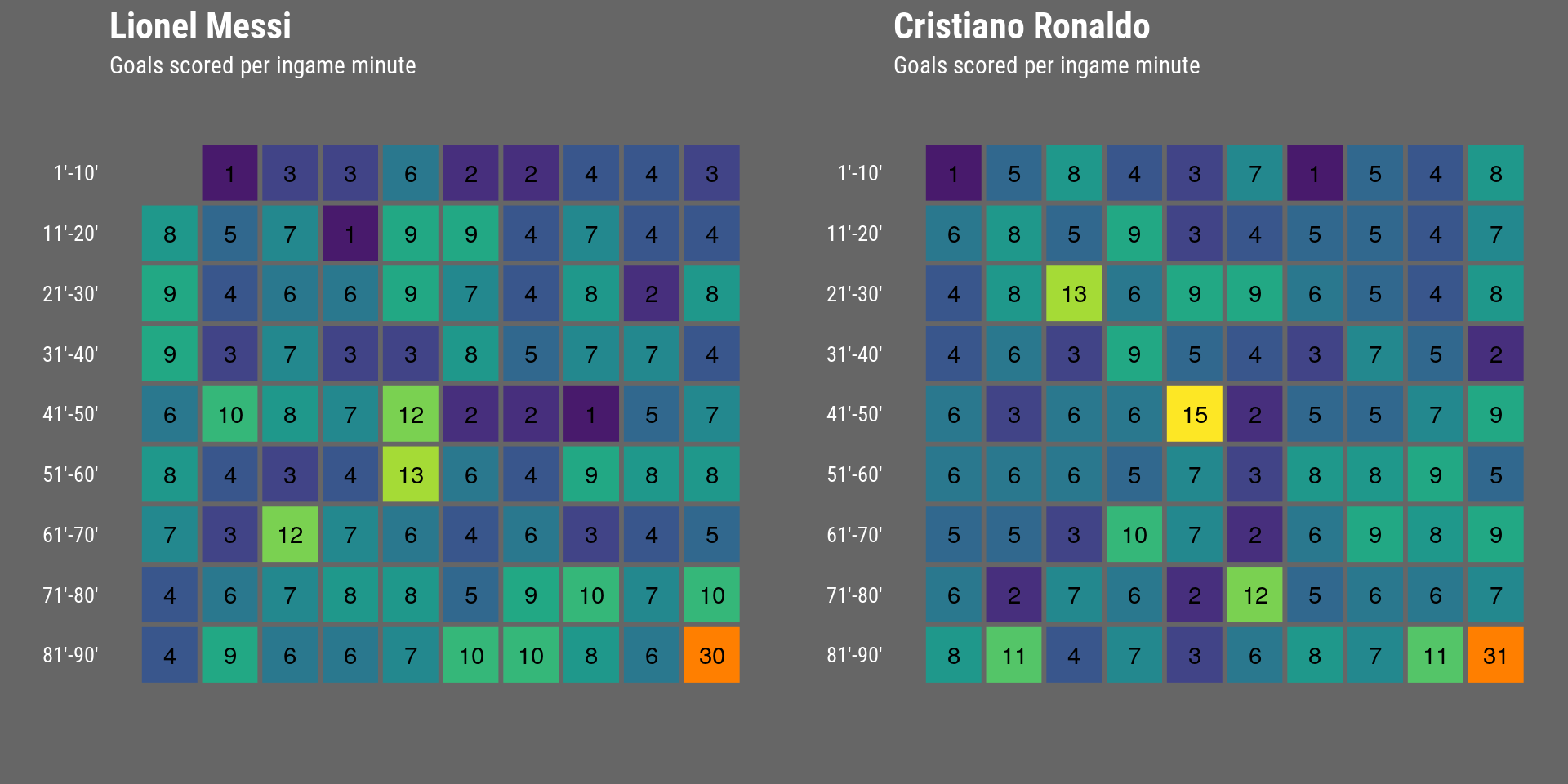

The only ingame minute he has not scored yet is the 3rd and the 24th¹. Let’s see how he compares with Messi an CR7 in that matter.

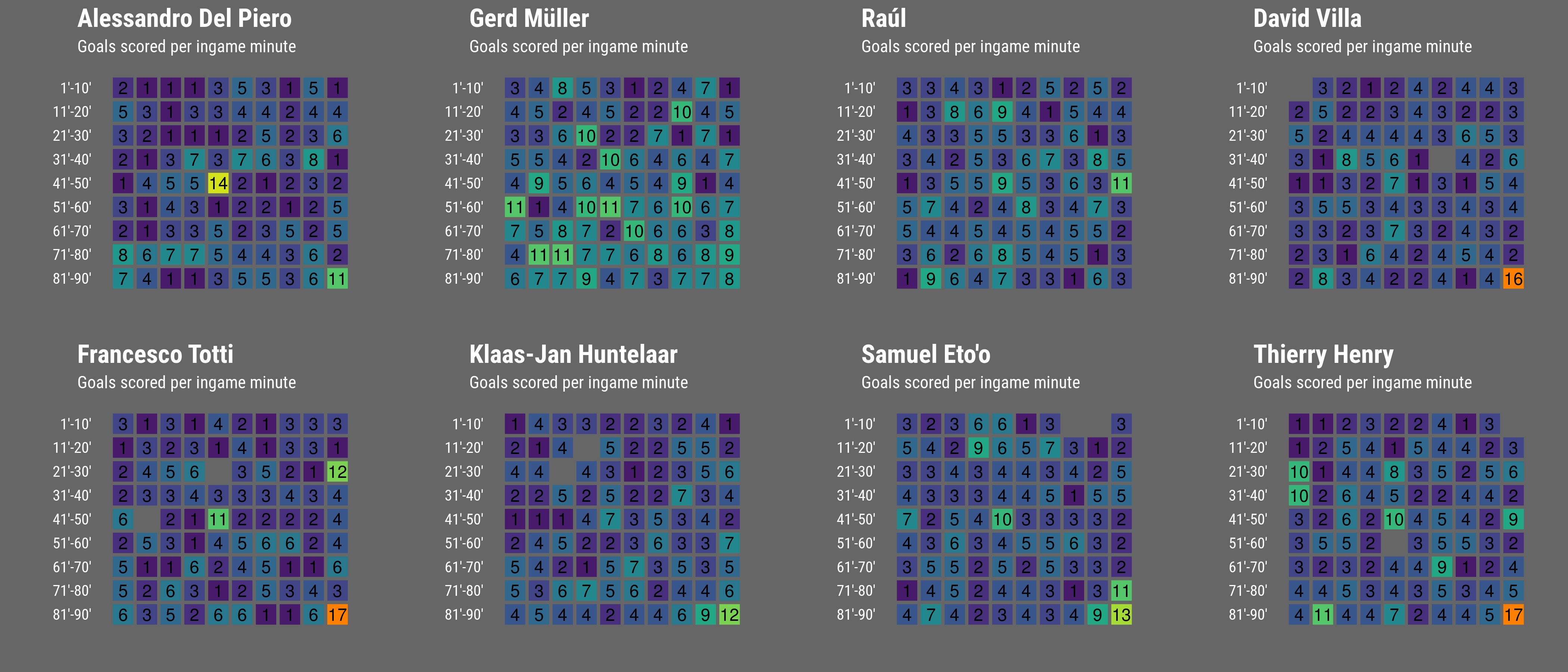

Messi seems to still miss a goal in the first minute. CR7 on the other hand managed to score in every single minute of a game. He is, however, not alone in this exclusive club. I found three more strikers (Alessandro Del Piero, Gerd Müller and Raúl) who, according to transfermarkt.co.uk, also scored in every minute of the game. The figure below shows their break downs per minute, together with five more strikers who come close to scoring in each minute.

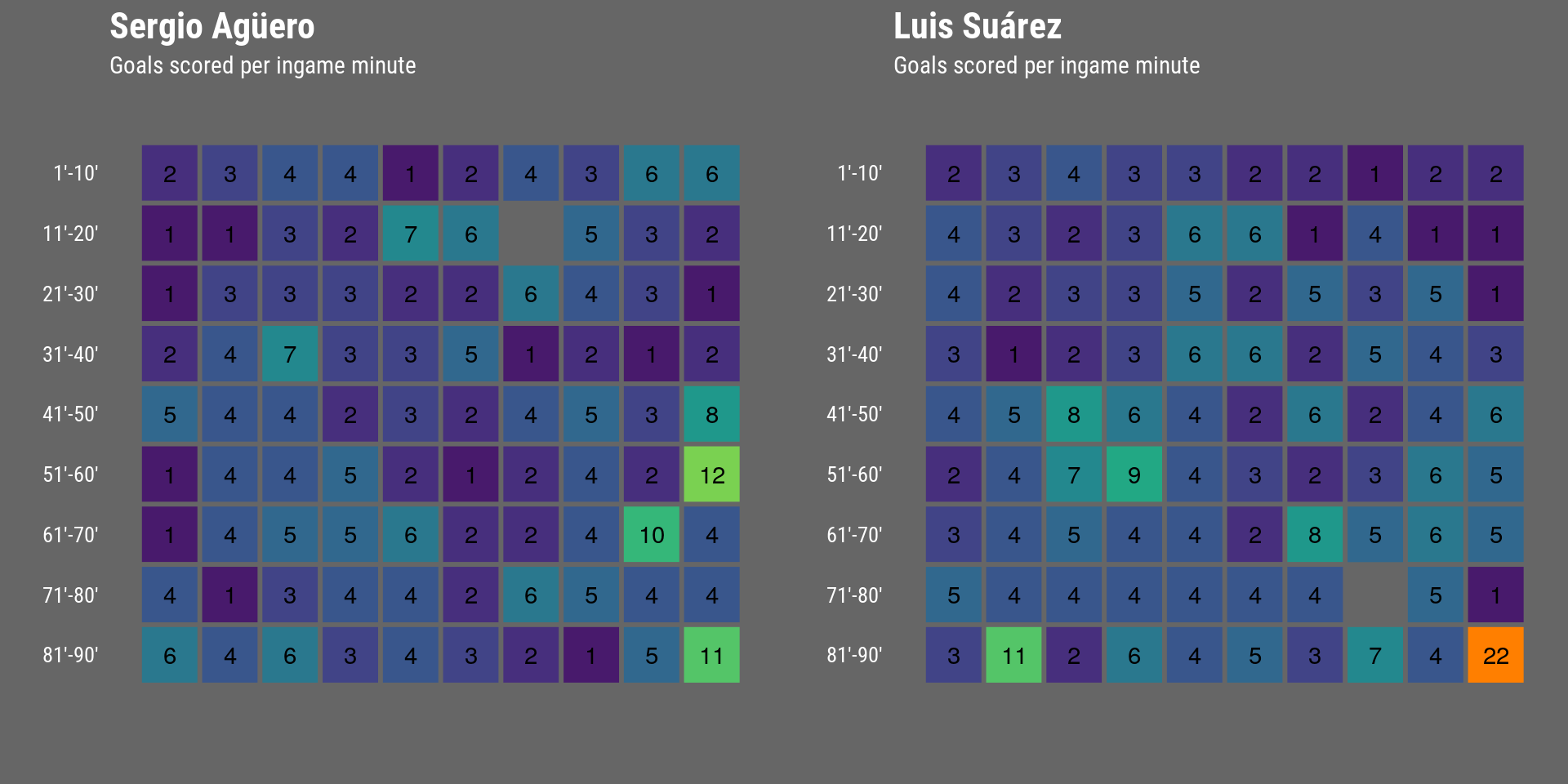

I have to shamefully admit that I forgot to check Luis Suárez and Sergio Agüero in my initial analysis. Lo and behold, both have scored in 89 minutes!

Next, we will look at the standing of the match a goal was scored. Note that we have to adjust the standing for away games since it is given in the “wrong” order. That is, we need to treat 0:1 as 1:0. This can be done by reversing the string with stringi::stri_reverse(). Be careful though! This only works for single digit standings.

stringi::stri_reverse("1:10")
## [1] "01:1"
zlatan_tbl$data %>%
  mutate(standing_adj = ifelse(venue=="A",stringi::stri_reverse(standing),standing)) %>%
  group_by(standing_adj) %>%
  summarise(goals = n()) %>%
  ggplot(aes(x = reorder(standing_adj,-goals),y = goals))+
  geom_col(fill="#FF7F00")+
  theme_goals(grid = "y")+
  labs(x = "standing after goal", y = "count") -> p_stand

p_stand

Type of Goal and the Providers

The columns we haven’t looked at yet are the type and provider.

zlatan_tbl$data %>%
  dplyr::filter(provider!="") %>%
  group_by(provider) %>%
  summarise(goals = n()) %>%
  top_n(10,goals) %>%
  ggplot(aes(x = reorder(provider,goals),y = goals))+
  geom_col(fill="#FF7F00")+
  scale_y_continuous(breaks=seq(0,12,3))+
  theme_goals(grid = "x")+
  labs(x = "", y = "count",subtitle="Top ten providers")+
  coord_flip() -> p_prov

zlatan_tbl$data %>%
  dplyr::filter(type!="") %>%
  group_by(type) %>%
  summarise(goals = n()) %>%
  ggplot(aes(x = reorder(type,goals),y = goals))+
  geom_col(fill="#FF7F00")+
  theme_goals(grid = "x")+
  labs(x = "", y = "count",subtitle="Type of goal")+
  coord_flip() -> p_type

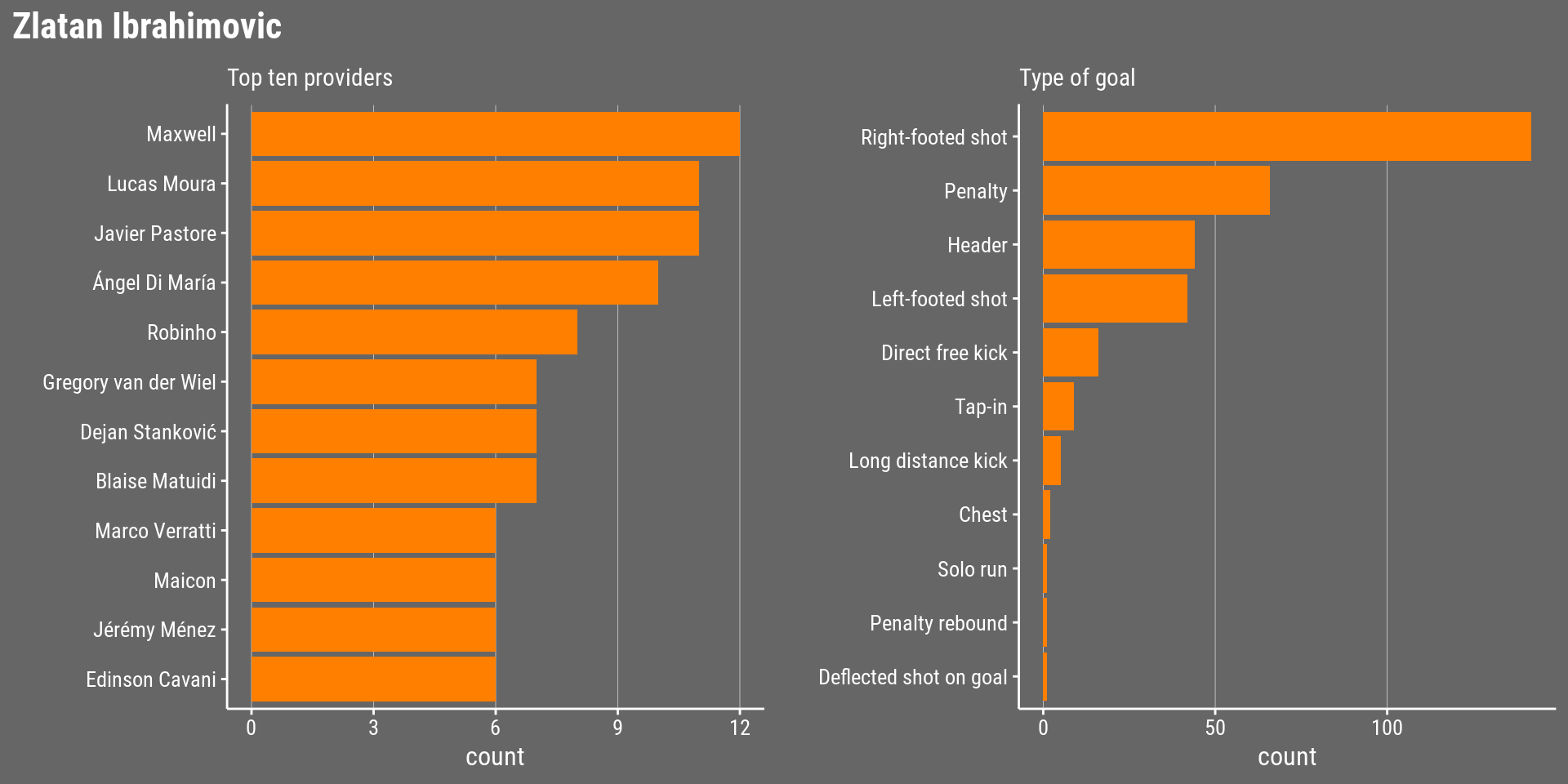

p_prov +
  p_type +
  plot_layout(nrow = 1) +
  plot_annotation(theme=theme(
    plot.background=element_rect(fill="#666666",colour="#666666"),
    plot.title = element_text(family = "Roboto Condensed",color="white",face = "bold",size=rel(1.5))),
    title=zlatan_tbl$name)

According to his transfermarkt profile, Zlatan is “both-footed”, but he seems to prefer the right foot for scoring.

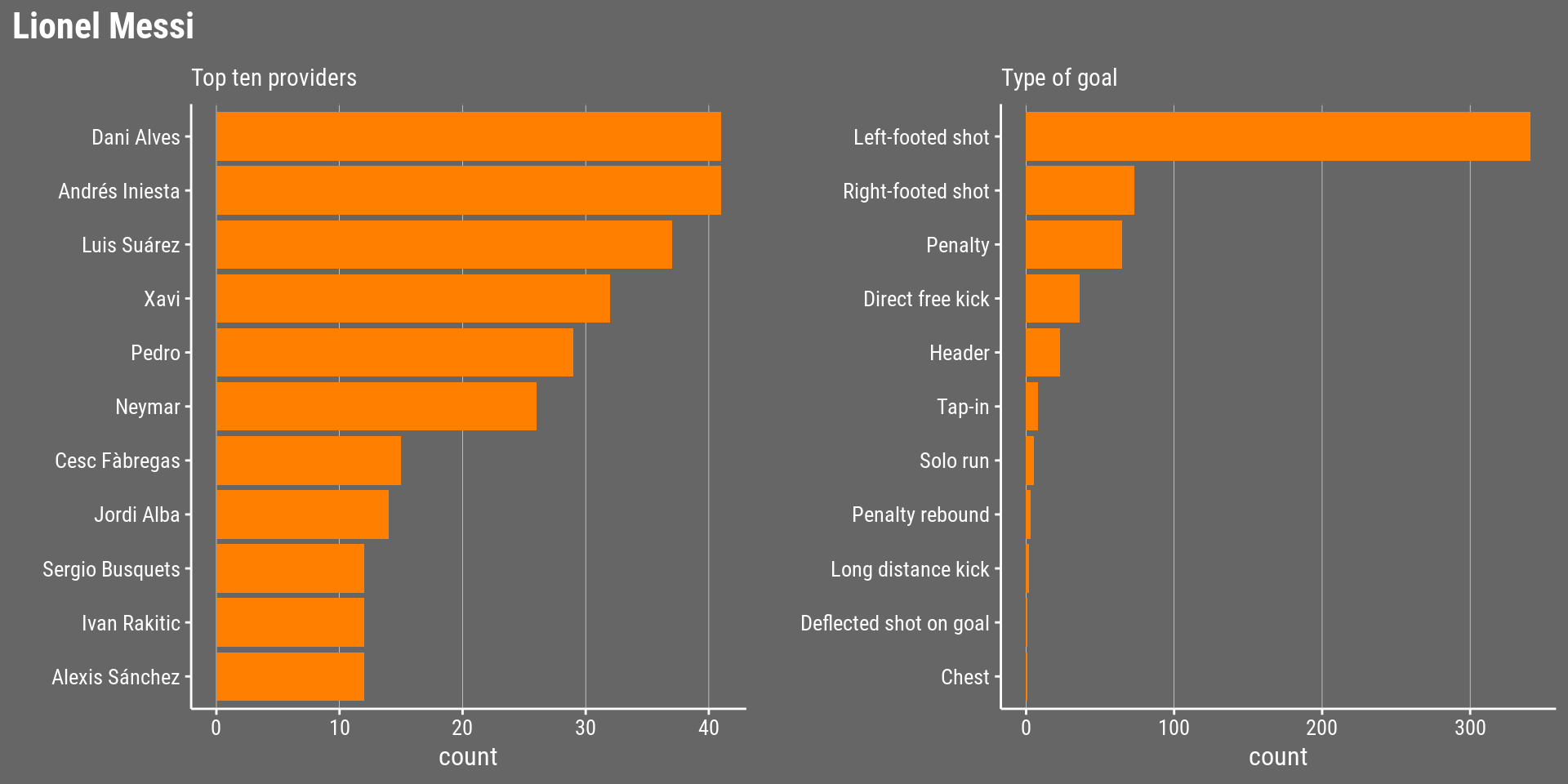

For comparison, here are the plots for Messi and CR7.

Scorecard

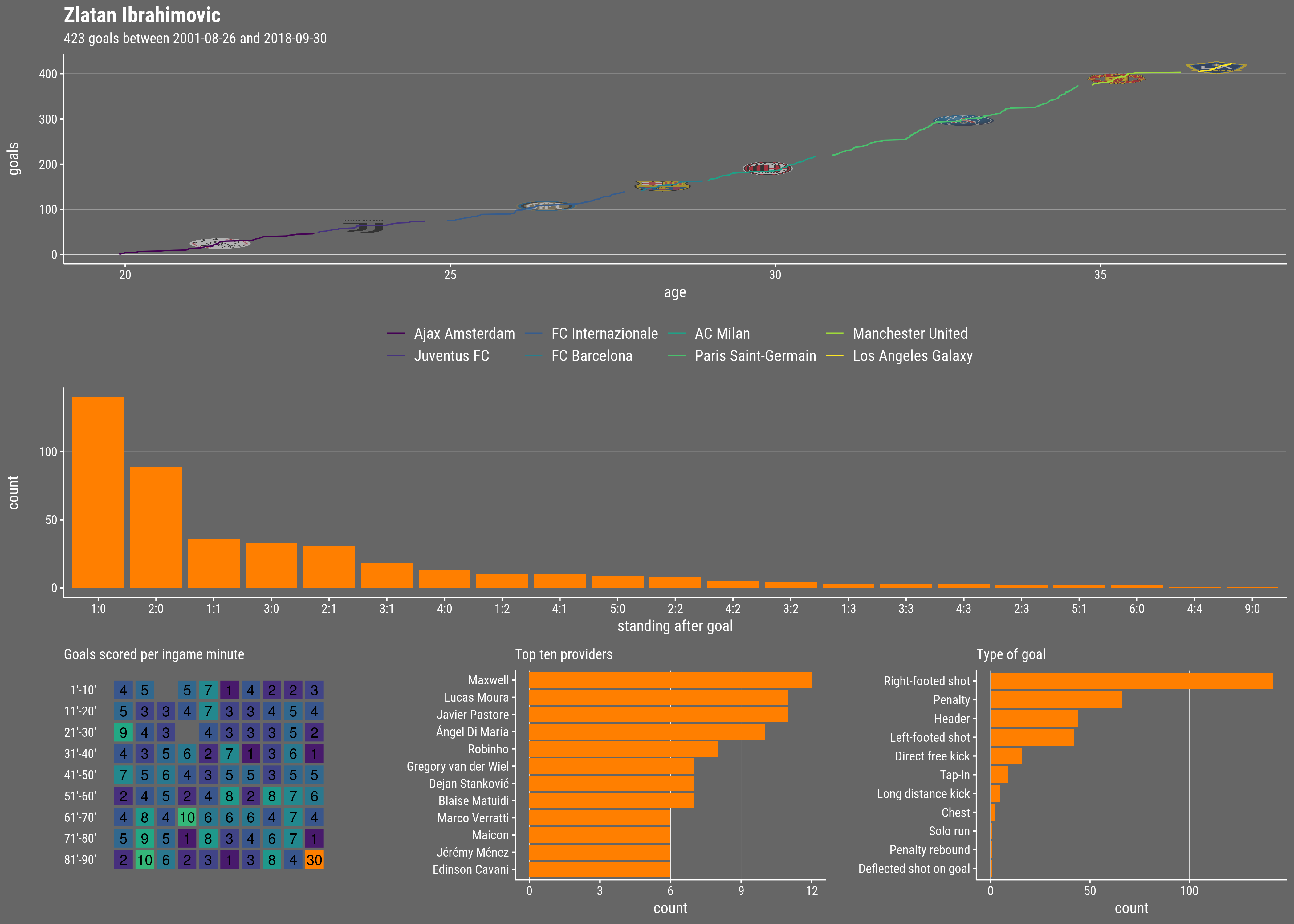

You can neatly put all plots together to create an informative scorecard for Zlatan.

p <- {p_date + p_stand + plot_layout(ncol = 2)}+
  {p_min + p_prov + p_type + plot_layout(ncol = 3)}+
  plot_layout(ncol = 1) +
  plot_annotation(theme = theme(
    plot.background = element_rect(fill="#666666",colour="#666666")))
p

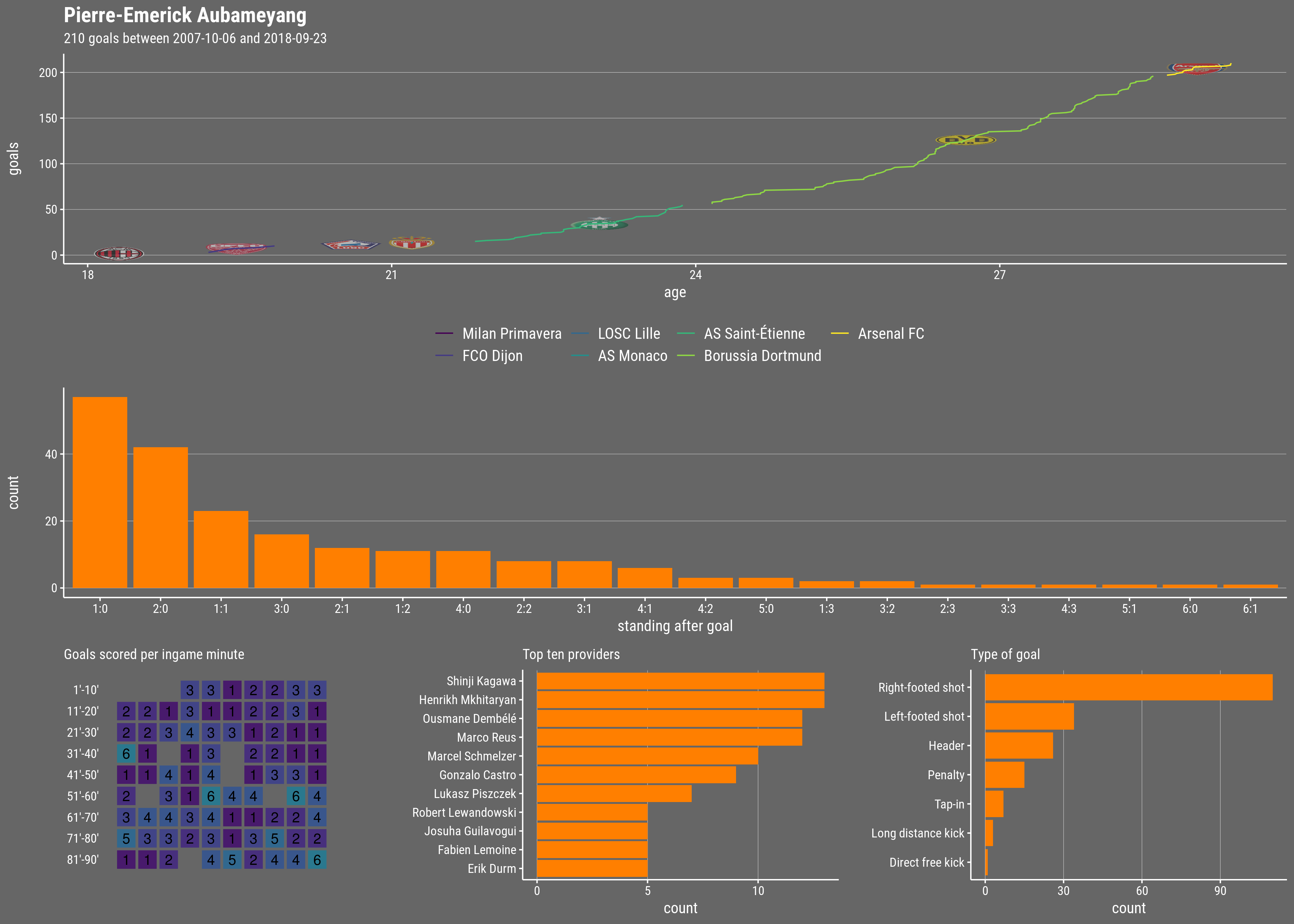

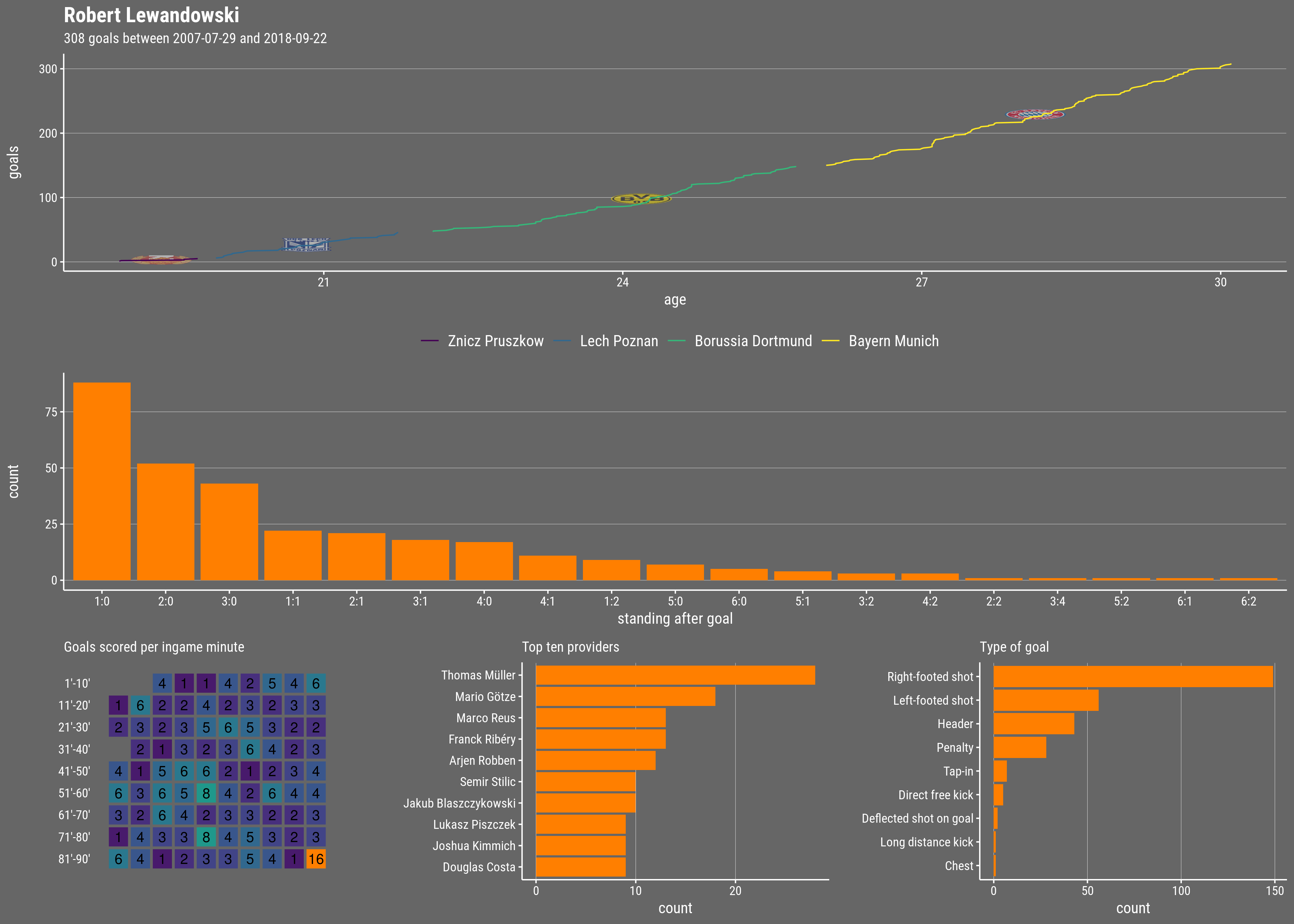

The code for the plots is kept as general as possible, so that it is easy to produce them quickly for any other player found on transfermarkt. Below are two more scorecards that were created in the same way as for Zlatan.


  1. according to this reddit post, Zlatan has in fact scored in every minute if one includes national team matches.↩︎
