This post introduces new features of `edgebundle`

, an R package that implements several edge bundling/flow and metro map algorithms.

In this post, I will introduce edge-path bundling (paper) and smooth flow maps. Given that edge bundling is mostly used on maps, I will also give a brief example on how to convert the output of any edge bundling function to an `sf`

linestring object.

The package is available on CRAN.

`install.packages("edgebundle")`

The developer version can be installed with

```
# install.packages("remotes")
::install_github("schochastics/edgebundle") remotes
```

```
library(edgebundle)
library(igraph)
library(ggplot2)
library(ggraph)
```

# Edge-path bundling

General edge bundling techniques cluster edges with similar properties, such as similarity in direction or proximity, to reduce visual clutter. Resulting clusters can produce ambiguous connections that do not exist in the data. Edge-path bundling is a very new bundling technique which simplifies edge clutter and reduces ambiguities compared to previous bundling methods. Edge-Path bundling takes a layout as input and clusters each edge along a weighted, shortest path to limit the deviation from a straight line. A very simple example is shown below.

```
<- graph_from_edgelist(matrix(c(1, 2, 1, 6, 1, 4, 2, 3, 3, 4, 4, 5, 5, 6),
g ncol = 2, byrow = TRUE
FALSE)
), <- cbind(c(0, 10, 25, 40, 50, 50), c(0, 15, 25, 15, 0, -10))
xy

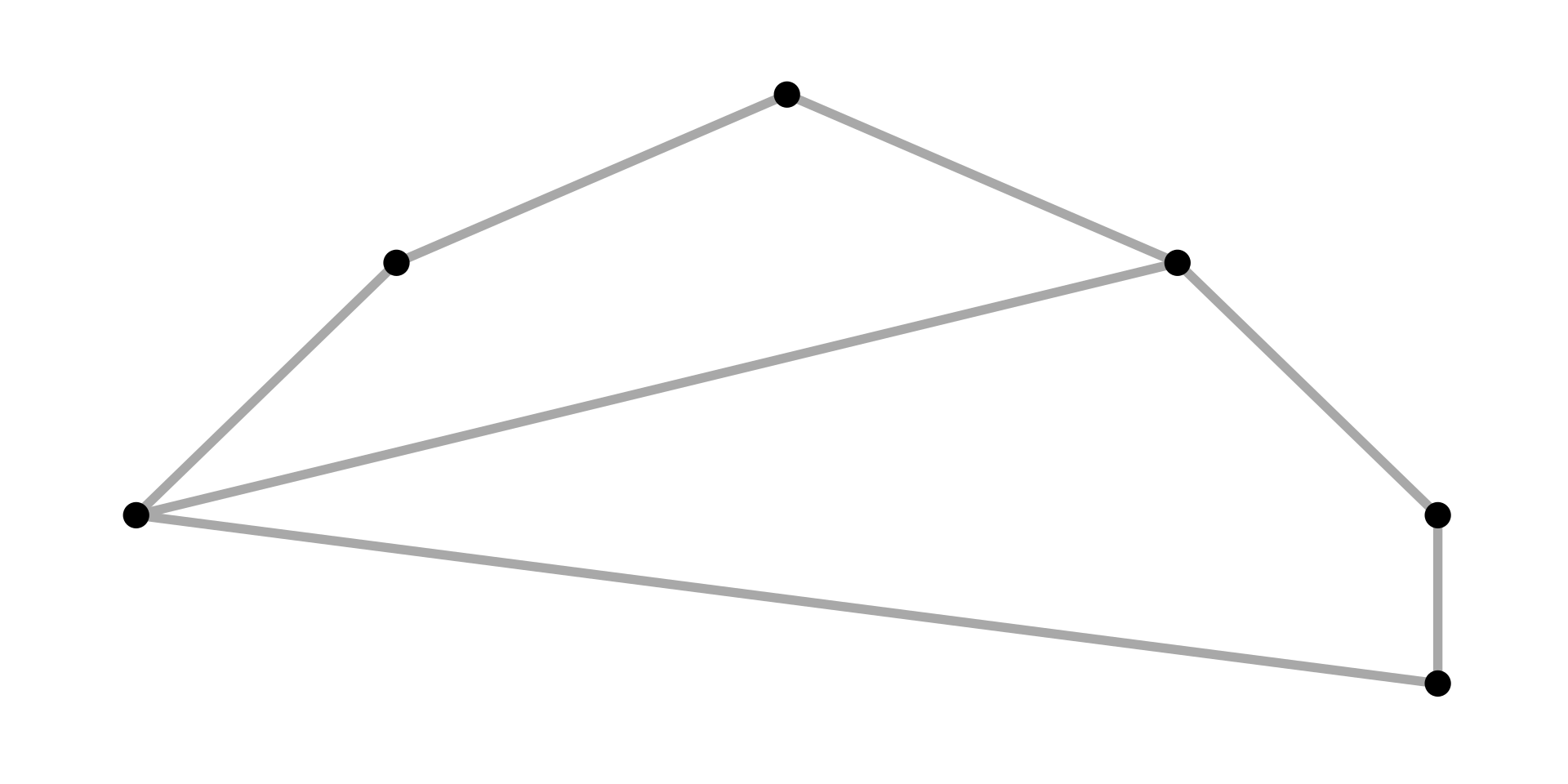

# non-bundled drawing
ggraph(g, "manual", x = xy[, 1], y = xy[, 2]) +
geom_edge_link0(edge_colour = "grey66", edge_width = 2) +
geom_node_point(size = 5) +
theme_graph()
```

```

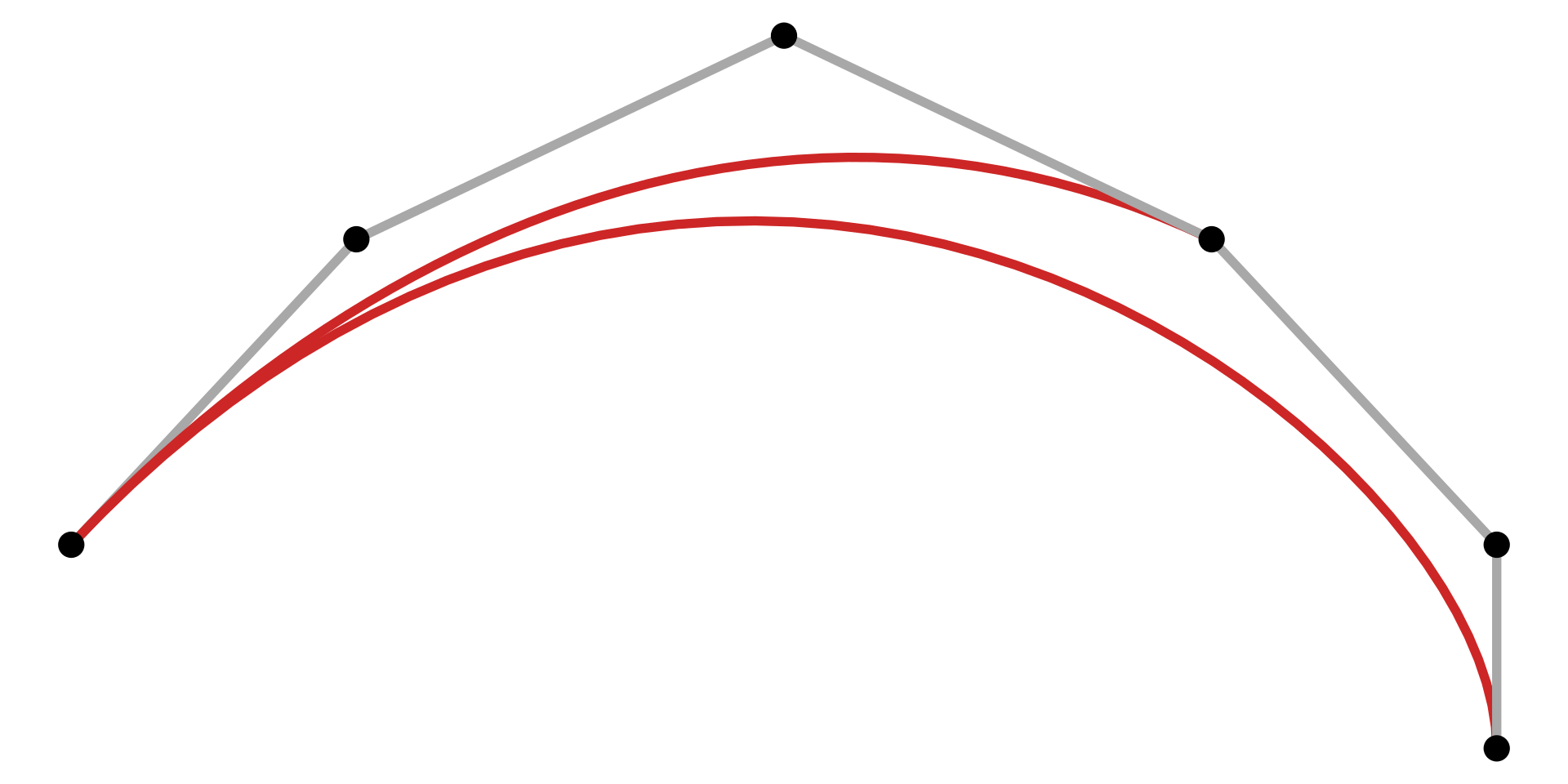

# bundled drawing
<- edge_bundle_path(g, xy, max_distortion = 2, weight_fac = 2, segments = 50)
res ggplot() +
geom_path(
data = res, aes(x, y, group = group, col = as.factor(group)),
size = 2, show.legend = FALSE
+
) geom_point(data = as.data.frame(xy), aes(V1, V2), size = 5) +
scale_color_manual(values = c("grey66", "firebrick3", "firebrick3", rep("grey66", 4))) +
theme_void()
```

The parameters `max_distortion`

and `weight_fac`

control what types of edges are being bundled. The default value for `weight_fac`

seems very universal but I noticed that the recommended default 2 for `max_distortion`

is not adequate for my implementation. I got the best results with values between 12 and 20 (I guess I have a “times ten” error somewhere). `segments`

controls how many dots on each line are placed. 50 seems to be a sensible default.

Personally, I really like this new algorithm. Not based on any objective metric but I think the resulting visualizations are quite pleasing. Below is the standard benchmark with the us_flight dataset.

```
<- us_flights
g <- cbind(V(g)$longitude, V(g)$latitude)
xy <- data.frame(x = V(g)$longitude, y = V(g)$latitude)
verts
<- edge_bundle_path(g, xy, max_distortion = 12, weight_fac = 2, segments = 50)
pbundle
<- map_data("state")
states
ggplot() +
geom_polygon(data = states, aes(long, lat, group = group),
col = "white", size = 0.1, fill = NA) +
geom_path(data = pbundle, aes(x, y, group = group),
col = "#9d0191", size = 0.05) +
geom_path(data = pbundle, aes(x, y, group = group),
col = "white", size = 0.005) +
geom_point(data = verts, aes(x, y),
col = "#9d0191", size = 0.25) +
geom_point(data = verts, aes(x, y),
col = "white", size = 0.25, alpha = 0.5) +
geom_point(data = verts[verts$name != "", ], aes(x, y),
col = "white", size = 3, alpha = 1) +
labs(title = "Edge-Path Bundling") +
::theme_graph(background = "black") +
ggraphtheme(plot.title = element_text(color = "white"))
```

# Convert edge-bundlings to sf objects

Edge bundlings are most commonly used for drawing networks on maps. It my thus be helpful to transform the result of an edge bundling to an sf object, so that the result can be easily visualized on projected maps. The code below gives a minimal example on how to achieve this, converting the result above into linestrings.

```
library(sf)
library(dplyr)
<- pbundle %>%
pbundle_sf st_as_sf(coords = c("x", "y"), agr = "constant") %>%
group_by(group) %>%
summarise(do_union = FALSE) %>%
st_cast("LINESTRING")
st_crs(pbundle_sf) <- "+proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0"
pbundle_sf
```

```
## Simple feature collection with 7 features and 1 field
## Geometry type: LINESTRING
## Dimension: XY
## Bounding box: xmin: 0 ymin: -10 xmax: 50 ymax: 25
## CRS: +proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0
## # A tibble: 7 × 2
## group geometry
## * <dbl> <LINESTRING [°]>
## 1 1 (0 0, 0.204082 0.306122, 0.408163 0.612245, 0.612245 0.918367, 0.816327…
## 2 2 (0 0, 1.04081 1.50854, 2.12072 2.96814, 3.23717 4.37207, 4.38763 5.7141…
## 3 3 (0 0, 0.61845 0.911992, 1.24914 1.81073, 1.89181 2.69543, 2.54622 3.565…
## 4 4 (10 15, 10.3061 15.2041, 10.6122 15.4082, 10.9184 15.6122, 11.2245 15.8…
## 5 5 (25 25, 25.3061 24.7959, 25.6122 24.5918, 25.9184 24.3878, 26.2245 24.1…
## 6 6 (40 15, 40.2041 14.6939, 40.4082 14.3878, 40.6122 14.0816, 40.8163 13.7…
## 7 7 (50 0, 50 -0.204082, 50 -0.408163, 50 -0.612245, 50 -0.816327, 50 -1.02…
```

# Smooth flow maps

The newly added function `tnss_smooth()`

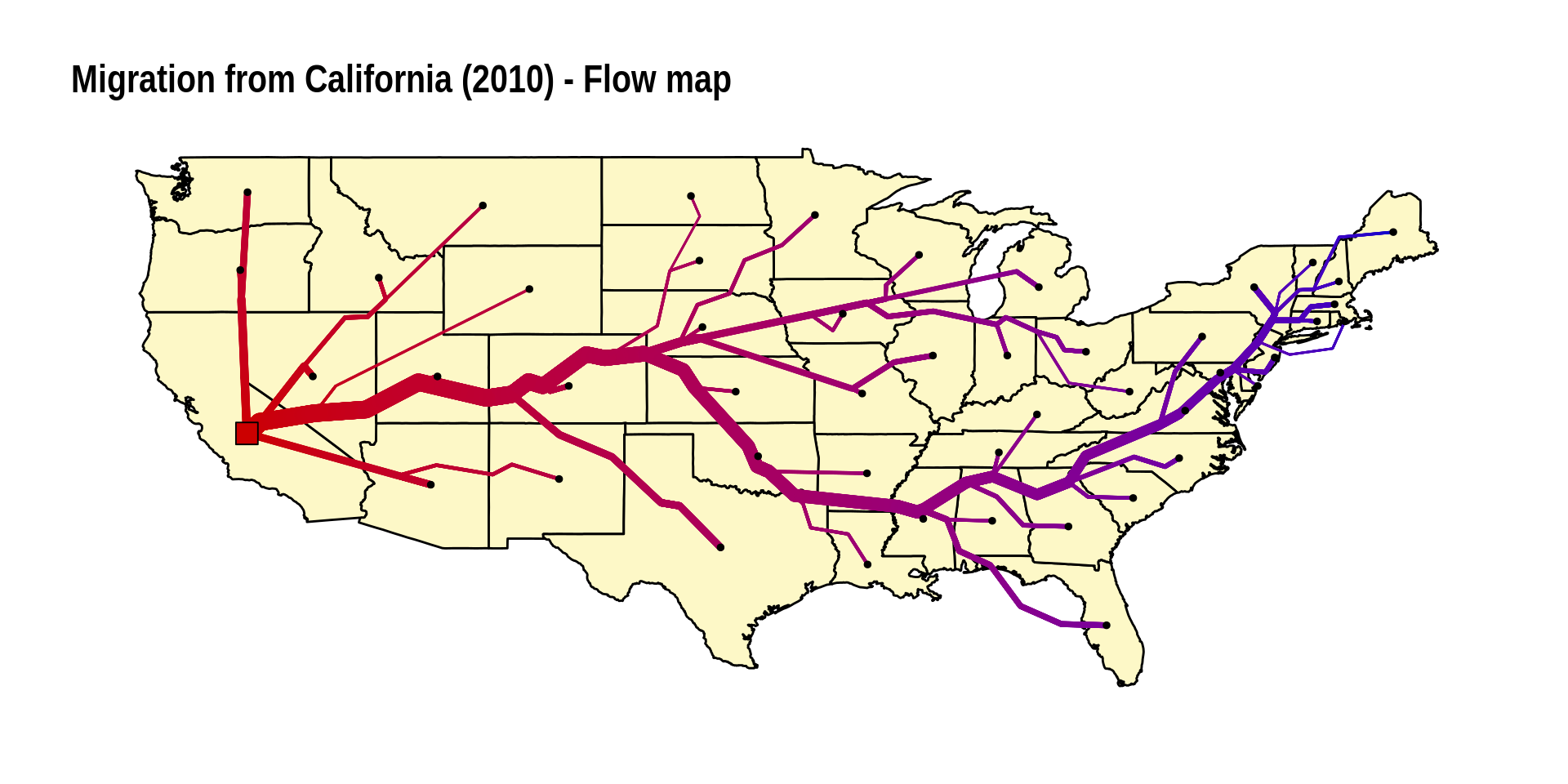

allows for a smoother appearance of flow maps. The figure below shows the standard way of plotting flow maps without smoothing.

```
<- 4
root <- cbind(state.center$x, state.center$y)[!state.name %in% c("Alaska", "Hawaii"), ]
xy <- tnss_dummies(xy, 4)
xy_dummy <- tnss_tree(cali2010, xy, xy_dummy, root = 4, gamma = 0.9, order = "near")
gtree
ggraph(gtree, "manual", x = V(gtree)$x, y = V(gtree)$y) +
geom_polygon(data = us, aes(long, lat, group = group), fill = "#FDF8C7", col = "black") +
geom_edge_link(aes(width = flow, col = sqrt((xy[root, 1] - ..x..)^2 + (xy[root, 2] - ..y..)^2)),
lineend = "round", show.legend = FALSE
+
) scale_edge_width(range = c(0.5, 4), trans = "sqrt") +
scale_edge_color_gradient(low = "#cc0000", high = "#0000cc") +
geom_node_point(aes(filter = tnss == "leaf"), size = 1) +
geom_node_point(aes(filter = (name == "California")), size = 5, shape = 22, fill = "#cc0000") +
theme_graph() +
labs(title = "Migration from California (2010) - Flow map")
```

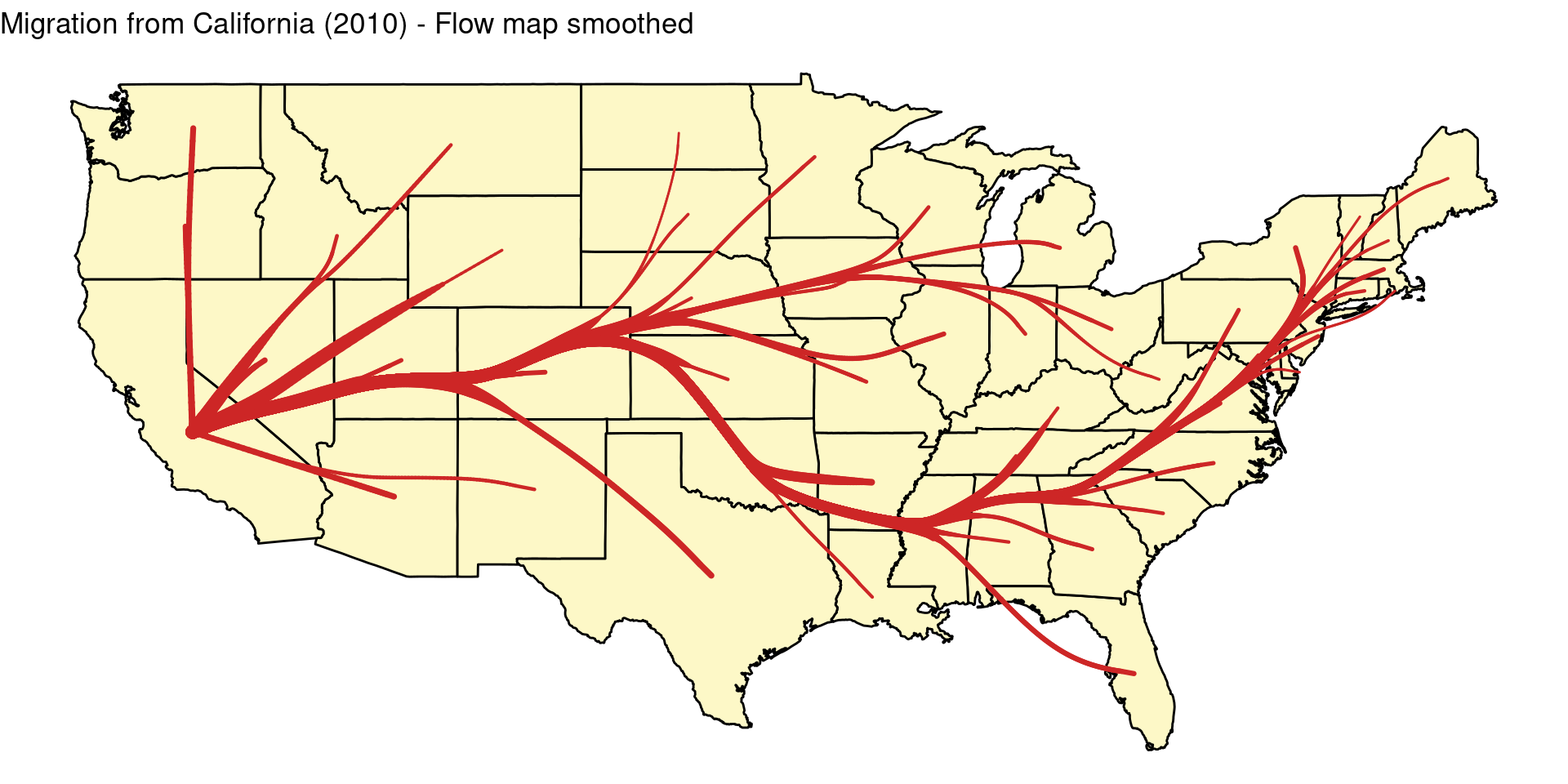

When the data is being smoothed, unfortunately also the standard way of plotting the flow map changes.

```
<- tnss_smooth(gtree, bw = 5, n = 20)
smooth_df
ggplot() +
geom_polygon(data = us, aes(long, lat, group = group), fill = "#FDF8C7", col = "black") +
geom_path(
data = smooth_df, aes(x, y, group = destination, size = flow),
lineend = "round", col = "firebrick3", alpha = 1
+
) theme_void() +
scale_size(range = c(0.5, 3), guide = "none") +
labs(title = "Migration from California (2010) - Flow map smoothed")
```

The output of `tnss_smooth()`

, however, has now the same structure as the result of all edgebundling functions, so that it is also straight forward to transform the smoothed flow map into an sf linestring.
